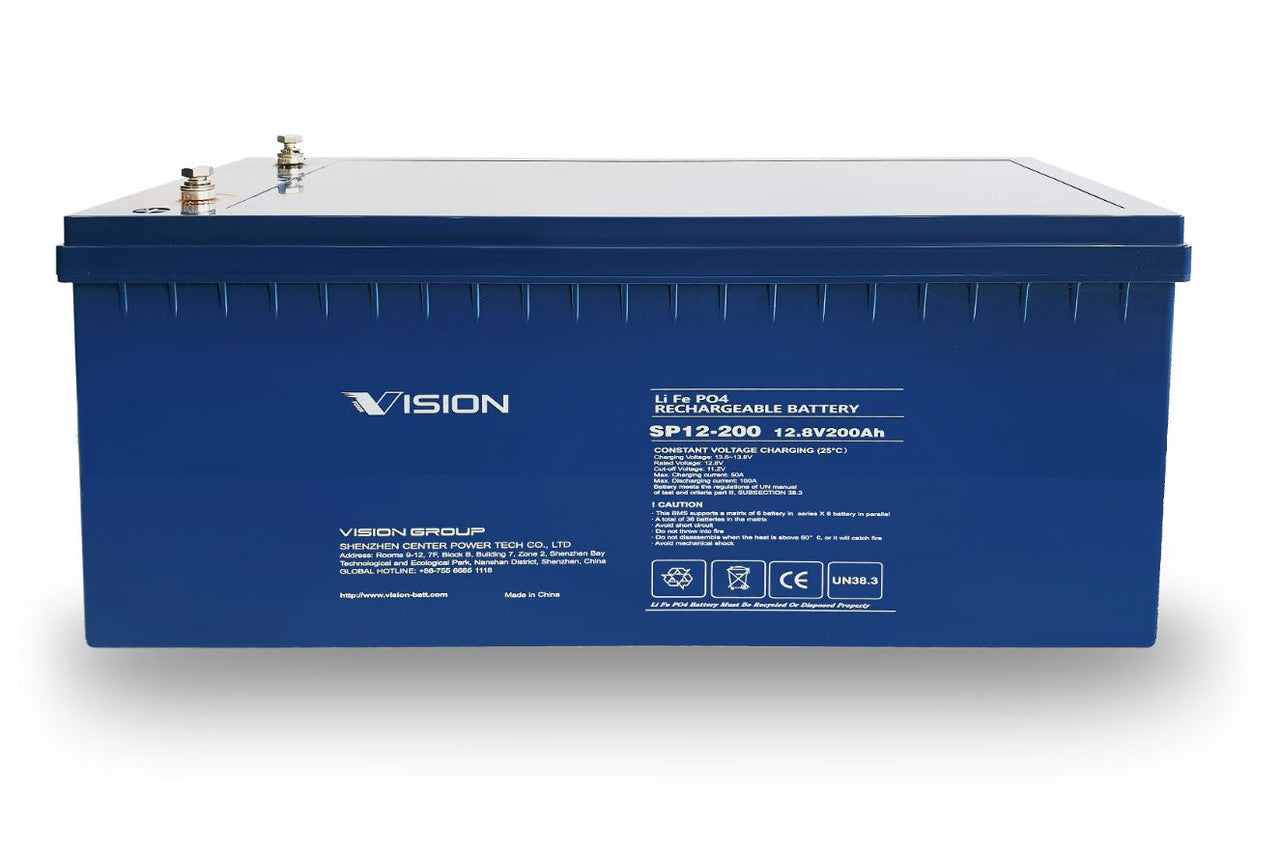

Vision 12V 200Ah Lithium Battery

PLEASE ENQUIRE ABOUT AVAILABILITY BEFORE ORDERING

Manufactured for deep cycle use as power for caravans, motorhomes and RV's. These Vision lithium batteries sport rugged cases that are fully sealed and maintenance free, concealing safer technology along with the added benefit of an easier recharge thanks to their superior recharge absorption. Lithium battery technology provides significant advantages over their traditional counterparts such as; longer life, greater usable capacity, faster charging and are light weight.

Please note when changing to a Lithium battery it is important to ensure that your existing components are Lithium compatible, including but not limited to battery chargers and solar controllers.

Features/Specifications:

• Rated voltage (V): 12.8
• Rated Capacity (Ah): 200
• Voltage Range: 9.2 ~ 14.6
• Cell: 3.2V 100Ah
• Cell Type: Prismatic LiFeP04
• Terminal Type: M8
• Cell Series & Parallels: 4S2P
• Rated Energy (KWh): 2.56
• Maximum Charge Current (A): 50
• Maximum Discharge Current (A): 100
• Pulse Current (A) (≤5s): 200
• Recommended Discharge Voltage (V): 11.2
• Recommended Charge Voltage (V): 13.6 ~ 13.8
• Life Cycle (@25°C,0.5°C/0.25°C,80%DOD): Approx 2500
• Short Circuit Current (<10ms): Approx 2500A
• Internal Resistance Fully Charged @ 25°CL: ≤5mOhms
• Operating Temperature: 0~50°C - 20~65°C
• Operating Humidity: 60±25%R.H.
• System Series: ≤6
• System Parallels: ≤6
• Dimensions (mm): W522xD238xH223
• Total Weight (Kg): Approx 21.5
• Warranty: 3 Years
