Truma 14L Water Heater, Gas/240V

PLEASE ENQUIRE ABOUT AVAILABILITY BEFORE ORDERING

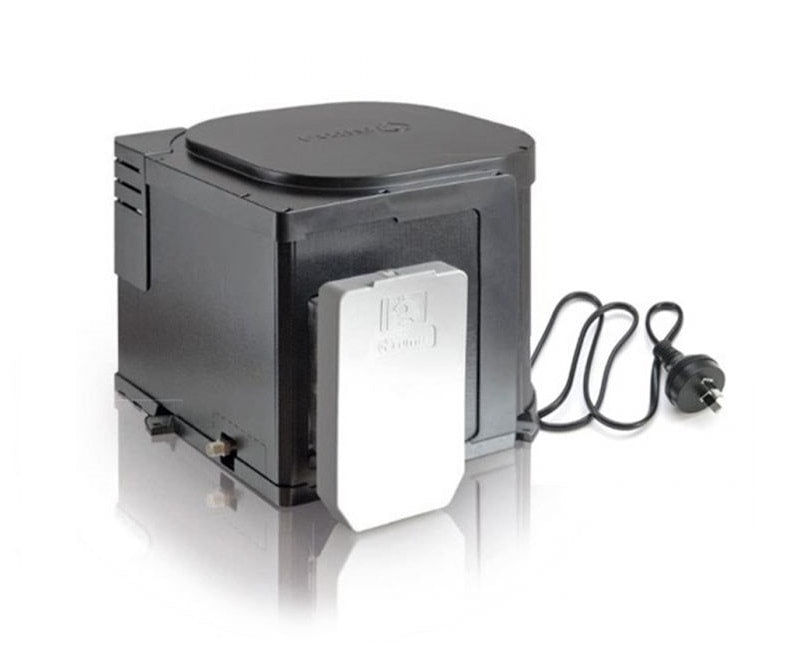

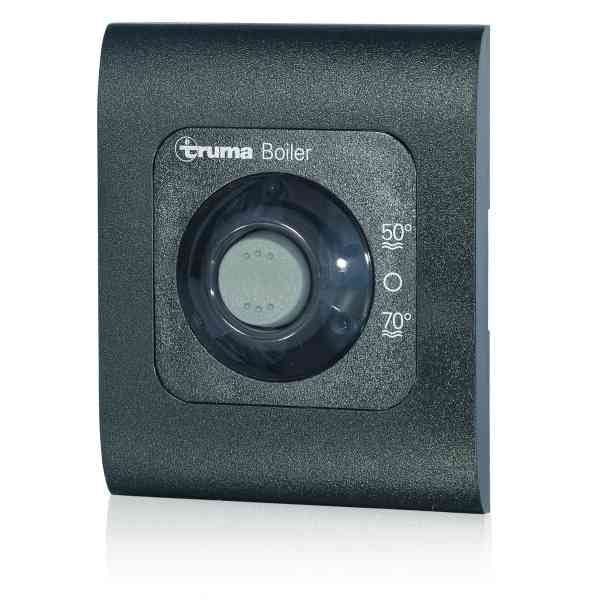

The highly durable 14 Litre stainless steel Truma Ultra Rapid water heater provides a reliable supply of hot water in leisure vehicles. It is easy to operate and can be run on gas and 240 Volt at the same time, this encourages short heating times when demand is higher. Set your desired water temperature from 60-70°C conveniently on the included control unit. The new Truma Ultra Rapid impresses with increased heating power, compact dimensions and excellent insulation to ensure that almost no heat is lost.

Features:

• Modern design with black housing and black control panel
• Improved corrosion resistance due to design and production change of the heating element and the water tank
• Stronger heating element: 1415W (240V) instead of 925W (240V)
• Can run on gas and 240V at the same time for faster heat up time
• Stainless steel water tank, no anode required
• Space saving dimensions (same footprint as previous models)
• Supplied with water connection kit to suit 12mm John Guest push fit plumbing
• Pump pressure must not exceed 40 psi

Specifications:

• Brand: Truma
• Capacity: 14 Litres
• Ignition: 12 Volt DC
• Operation: Gas/240V
• 240V electric heating element: 1415W
• Water temperature range: 60-70°C
• Heating time: Mixed 28min, 240V 40min, Gas 45min
• Power supply: 240V AC, 50 Hz
• Output power: 1300W (5.7A)/1415W (5.9A)
• Ignition: 0.17A
• Heating up: 0.08A
• Stand by: 0.04A
• Gas consumption: 90 g/h
• Heat output: 4.1 MJ/h
• Nominal input: 4.7 MJ/h
• Test point pressure: 2.75 kPa
• Pump pressure: Max 2.8 Bar (pump pressure must not exceed 40 psi)
• System pressure: Max 4.5 Bar
• Connection: pressure resistant hot water hose - 12mm rigid pipe
• Connections: PIPE-12mm, MALE-SAE-5116
• Watermark certified

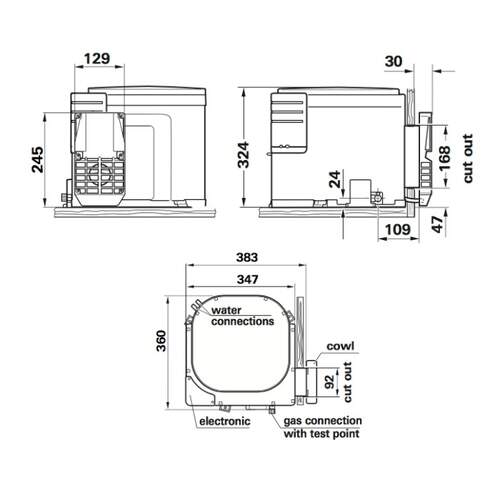

• Dimensions (mm): D383 x W360 x H324
• Weight: 7.2 Kg (empty)
• Warranty: 2 Years
