Thule Manual Bike Lift

Thule Manual Bike Lift

Regular price $2,119.00 NZD
Regular price Sale price $2,119.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

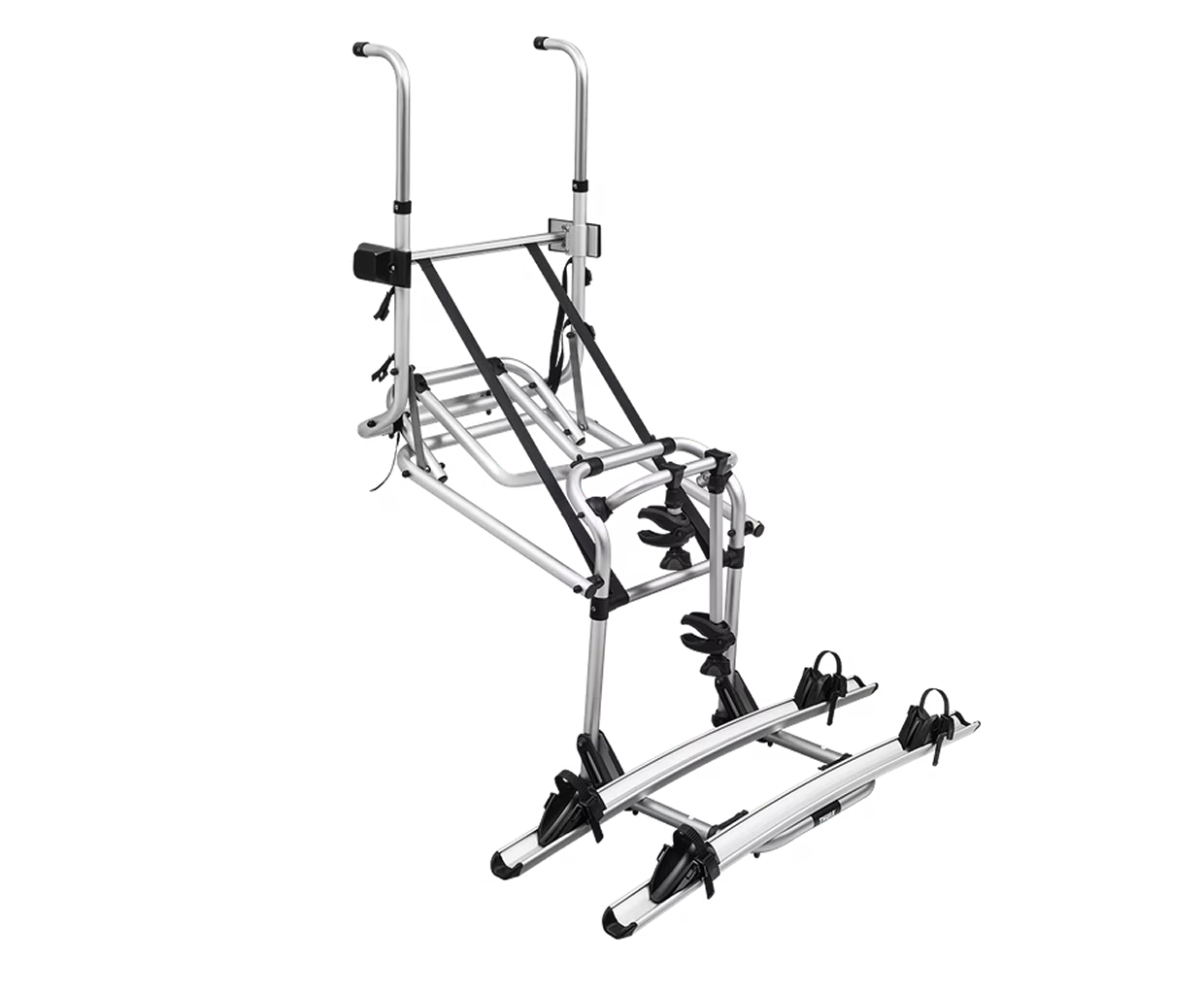

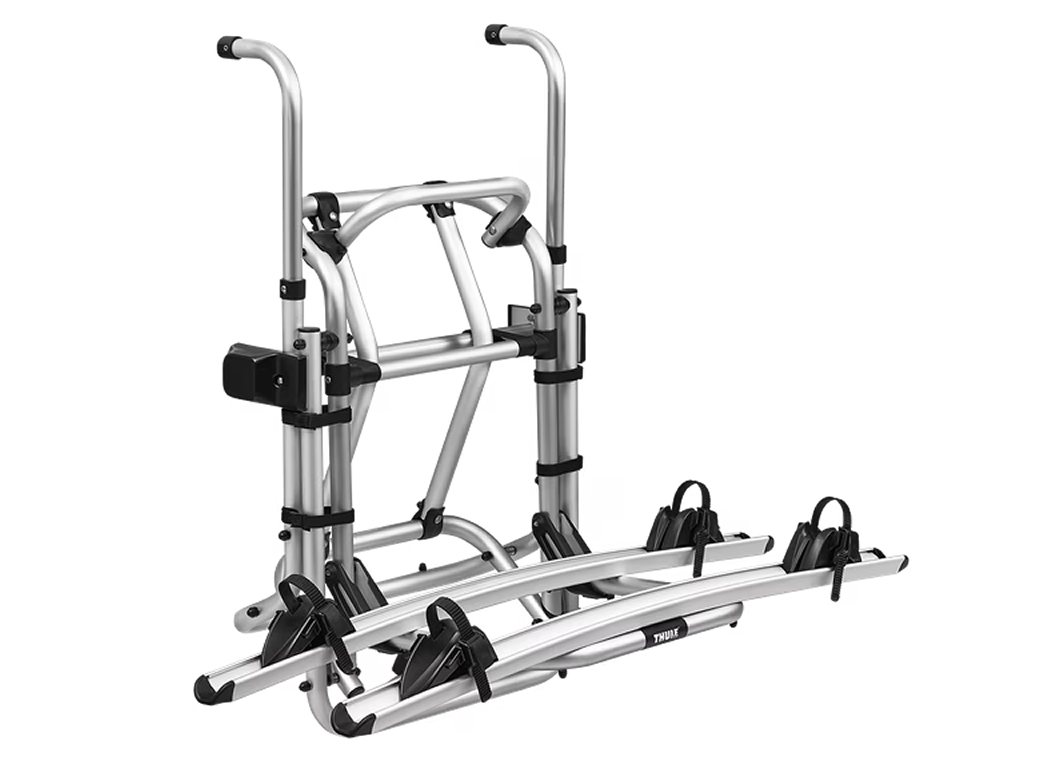

The Thule V16 bike rack manual lift allows you to mount your bikes to the wall of your RV. It is ideal for RV's that are too high for the average bike rack. This bike rack features a crank mechanism that allows you to lower the platform by up to 70cm, which makes loading and unloading your bikes a breeze, and winds back up for secure transportation. Comes standard with two bike rails that feature adjustable wheel holders which can be moved to correctly line up with your bikes wheelbase and are locked in place with rubber ladder bands. Ideal for ebikes with a load capacity of 50Kg, the bike rack is light weight and can hold up to three bikes with the purchase of an additional rail kit. The bike frame holders rest against the bikes and feature soft touch material to prevent marking your bikes, while the lockable bike holders provide additional security.


  • Designed for a solid and stable attachment to the rear wall of a caravan or motorhome
  • Holds 2 bikes as standard, can be extended to take 3 if an additional rail kit is purchased separately
  • Ideal for ebikes, load capacity up to 50Kg
  • The base can be lowered and raised by using a manual winding handle
  • Can bridge a distance of 70cm in height to provide easy access to the platform
  • The platform lock creates excellent dynamic force control and perfectly secures your bikes during transport
  • The platform is locked manually and can be easily clicked in the upwards position when not in use
  • Integrated safety straps

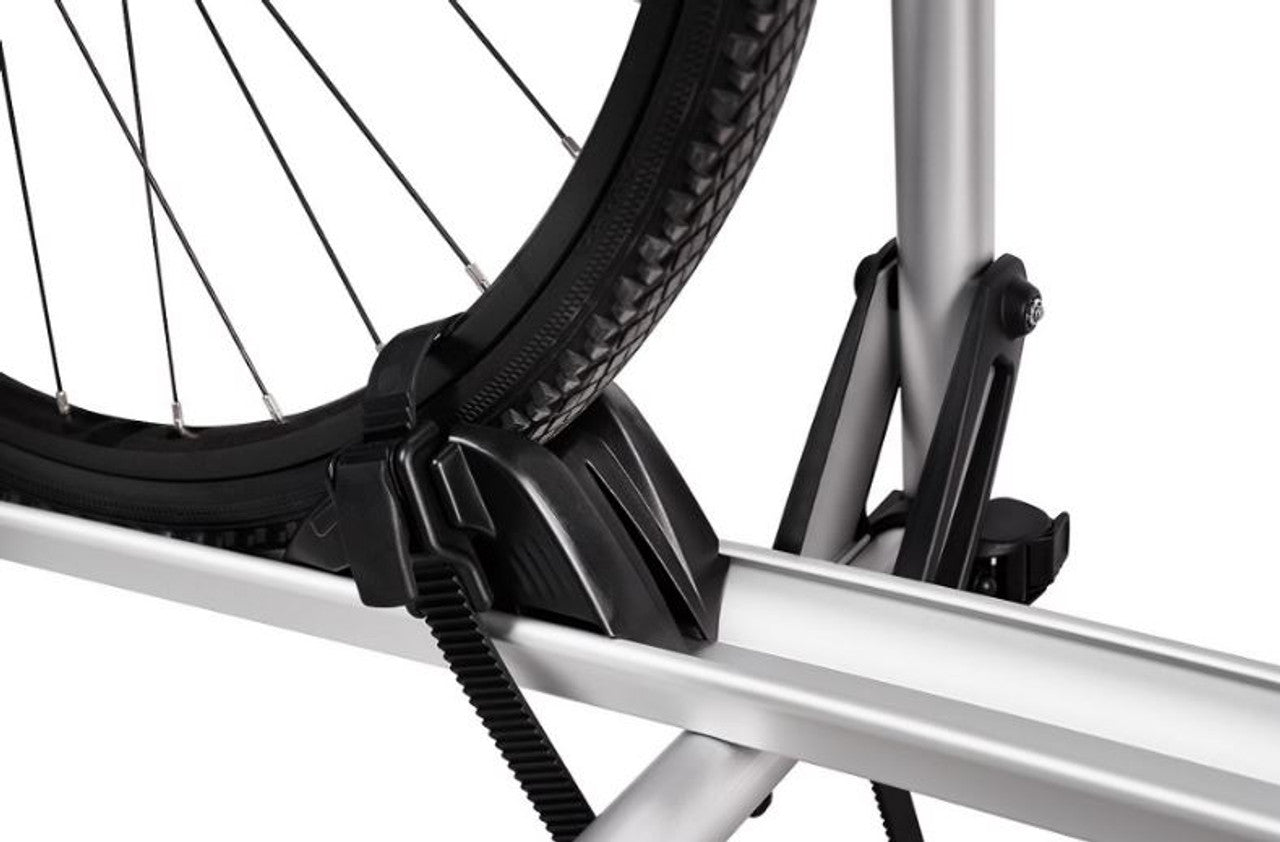

  • Adjustable wheel holders make sure you can almost fit any bike

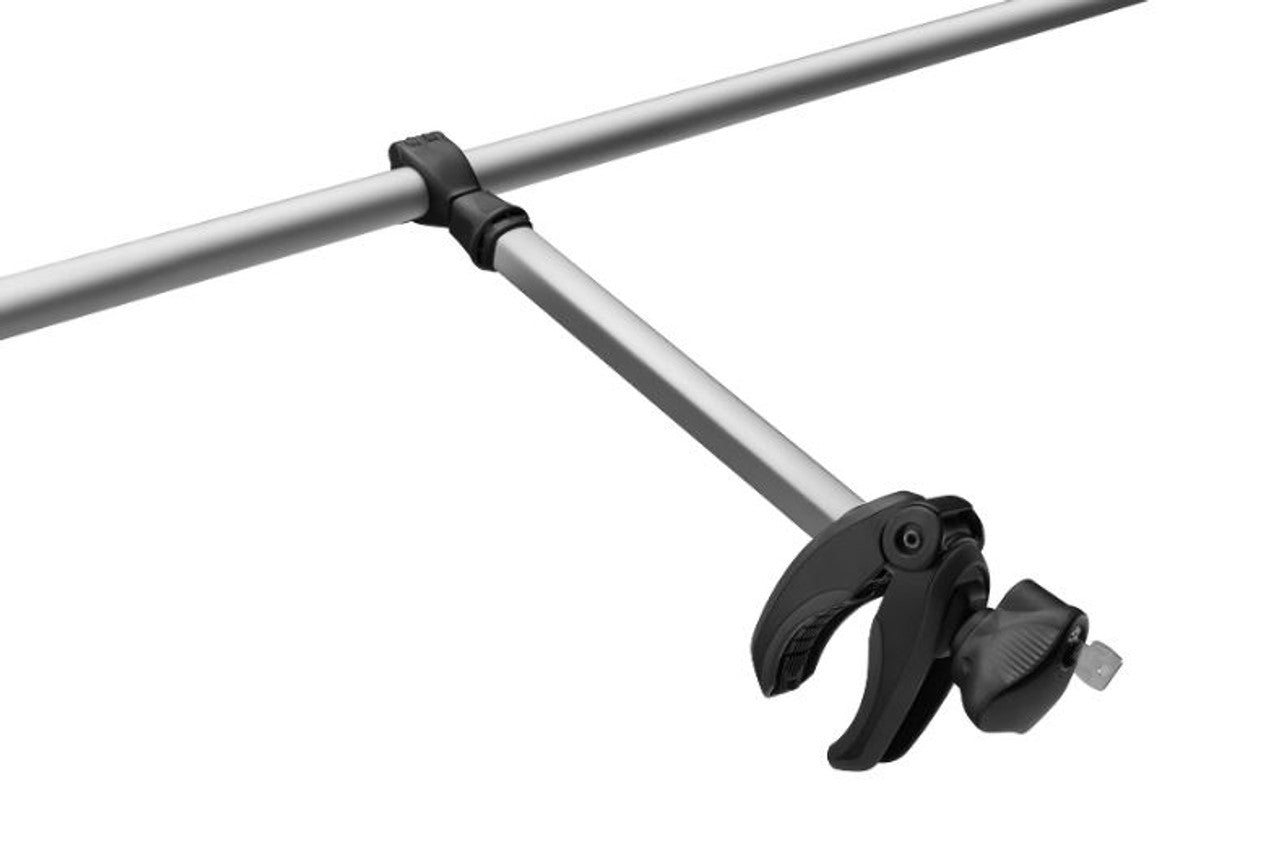

  • Lockable bike holders, Thule AcuTight torque limiter knobs click when optimal torque is reached


  • Operation: Manual
  • Mounting location: Rear wall
  • Lockable: Yes
  • Standard capacity: 2 bikes
  • Max load capacity: 3 bikes (with additional mounting kit)
  • Max bike weight: 30Kg (per rail)
  • Max weight capacity: 50Kg
  • Suitable for ebikes: Yes
  • Max tyre width (mm): 70
  • Drop distance (mm): 700
  • Distance between bikes (mm): 300
  • Dimensions (mm): W1310 x H700-950 x D700-1200
  • Weight: 17Kg
View full details
