Gipsy Caravans

Suburban 20.3L Water Heater Gas/240V

Suburban 20.3L Water Heater Gas/240V

Regular price $1,250.00 NZD
Regular price Sale price $1,250.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

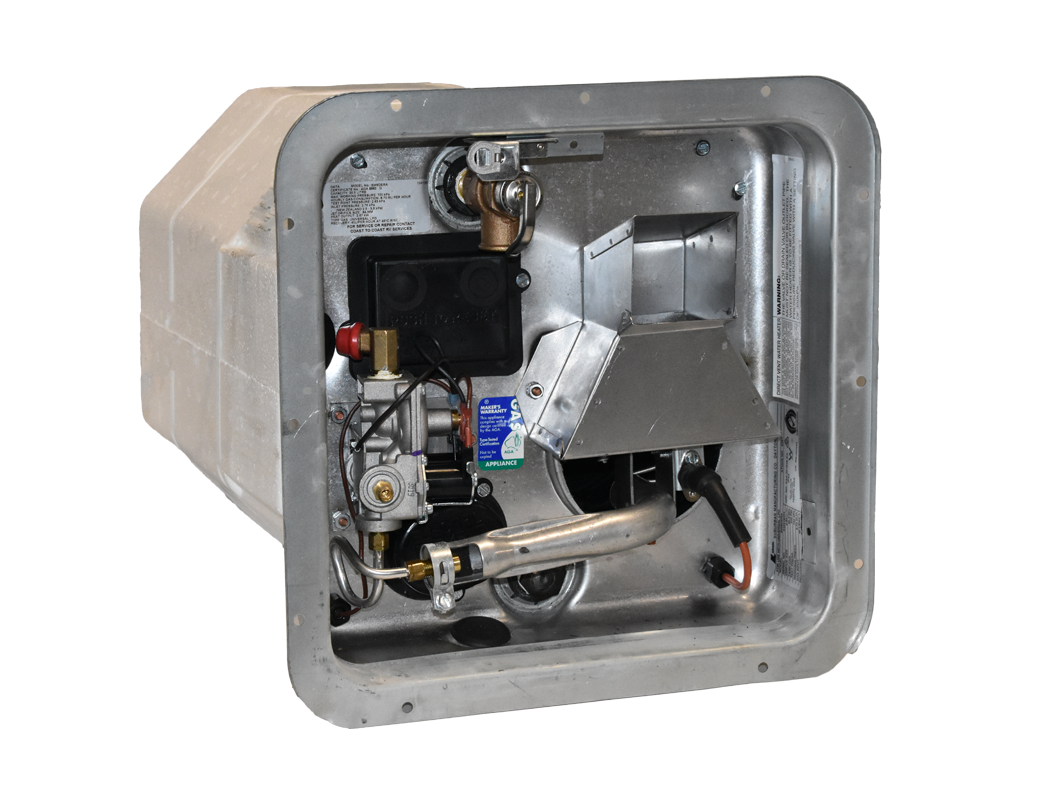

Suburban water heaters are known for their porcelain lined steel tanks, a high powered burner, fast recovery and ease of use thanks to the electronic ignition. This water heater has a 12 Volt DC ignitor, operating on LPG gas and 230 Volt AC with the user being able to control operation by means of an internal switch. Suburban uses a porcelain lined, steel tank with an anode rod to absorb the corrosive action caused by hot water. The sacrificial, magnesium anode rod equalizes aggressive water action providing cathodic protection for the interior of the tank. Frequency of anode replacement will vary depending on the water conditions and usage, however it should be checked annually. With a burner rating of 12,000 BTU (approx 4Kw) and a recovery rate of 40L per hour, it's the fastest in the industry. For higher recovery both the gas and electric element may be used simultaneously. All Suburban water heaters are designed for easy operation and maintenance. The limit switch, reset button, electric heat element and combination drain plug/anode rod are conveniently located in a housing behind the removable outer door, making service a breeze.


  • 12V Control panel with auto ignition
  • 12V DC ignition
  • Operates on universal gas & 240V AC
  • Easy operation and maintenance
  • Porcelain lined, steel water heater tank
  • Anode rod to absorb corrosive action
  • Copolymer insulation jacket to retain heat
  • Fast recover time
  • Meets New Zealand gas regulations

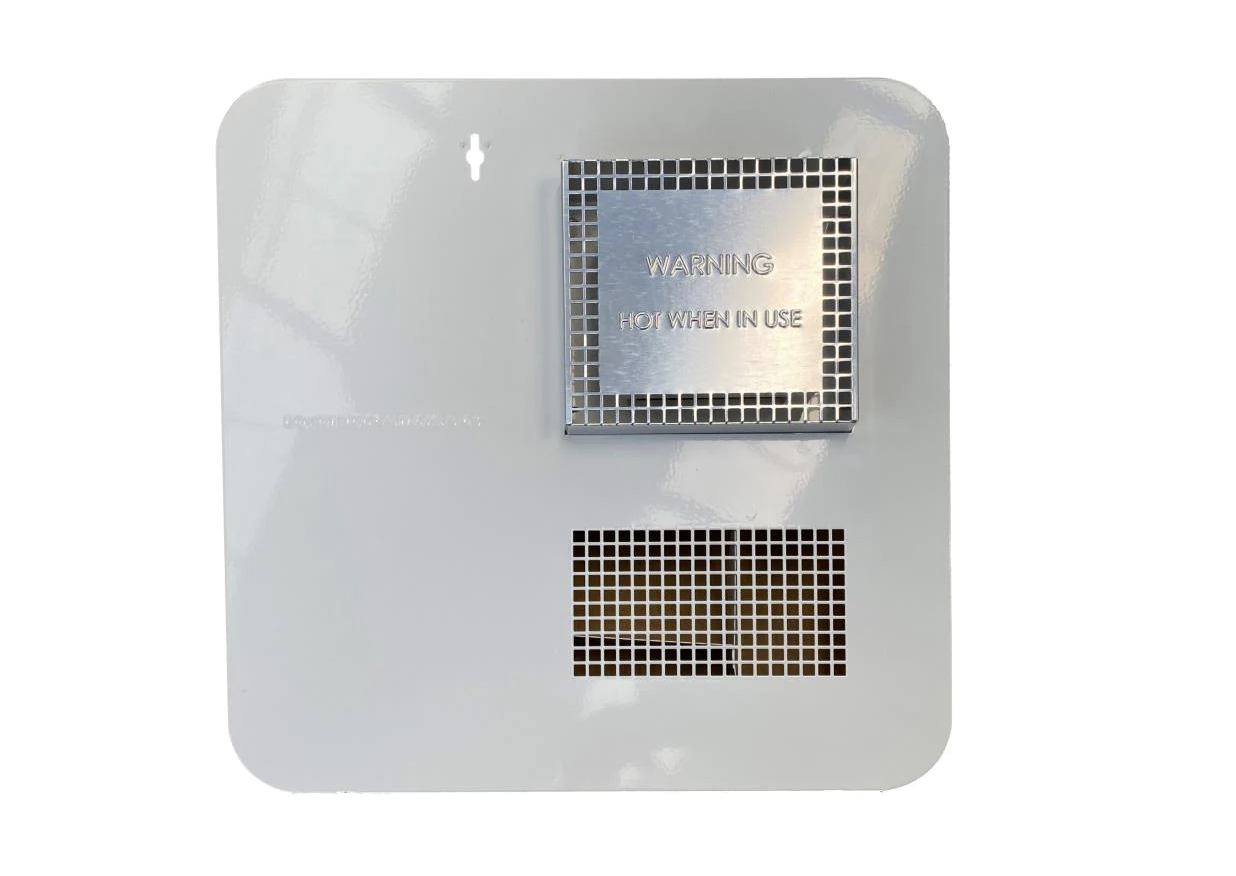

  • Includes service door
  • Pump pressure must not exceed 45 psi
  • Supplied with water connection set up for 12mm John Guest push fit pipe


  • Capacity: 20.3L
  • Ignition: 12V DC
  • Heated via: LPG and/or 240V AC
  • Hourly gas consumption: 8.7 mj/hr
  • Element rating: 1440W - 6A
  • Burner rating: 12,000 BTU (approx) 4Kw
  • Set point temperature: 54°C
  • Recovery: 40L/hr at 45°C temperature rise
  • Max working pressure: 700 kPa
  • Test point pressure: 2.63 kPa
  • Jet orifice size: 0.84mm
  • Water inlet: 1/2" BSP female thread
  • Pump pressure: Must not exceed 45psi
  • Dimensions (mm): H320 x W320 x D500
  • Weight (empty): 15 Kg
