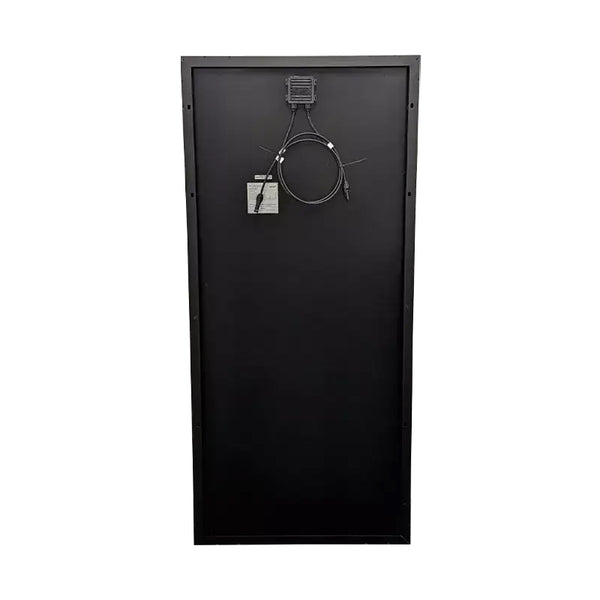

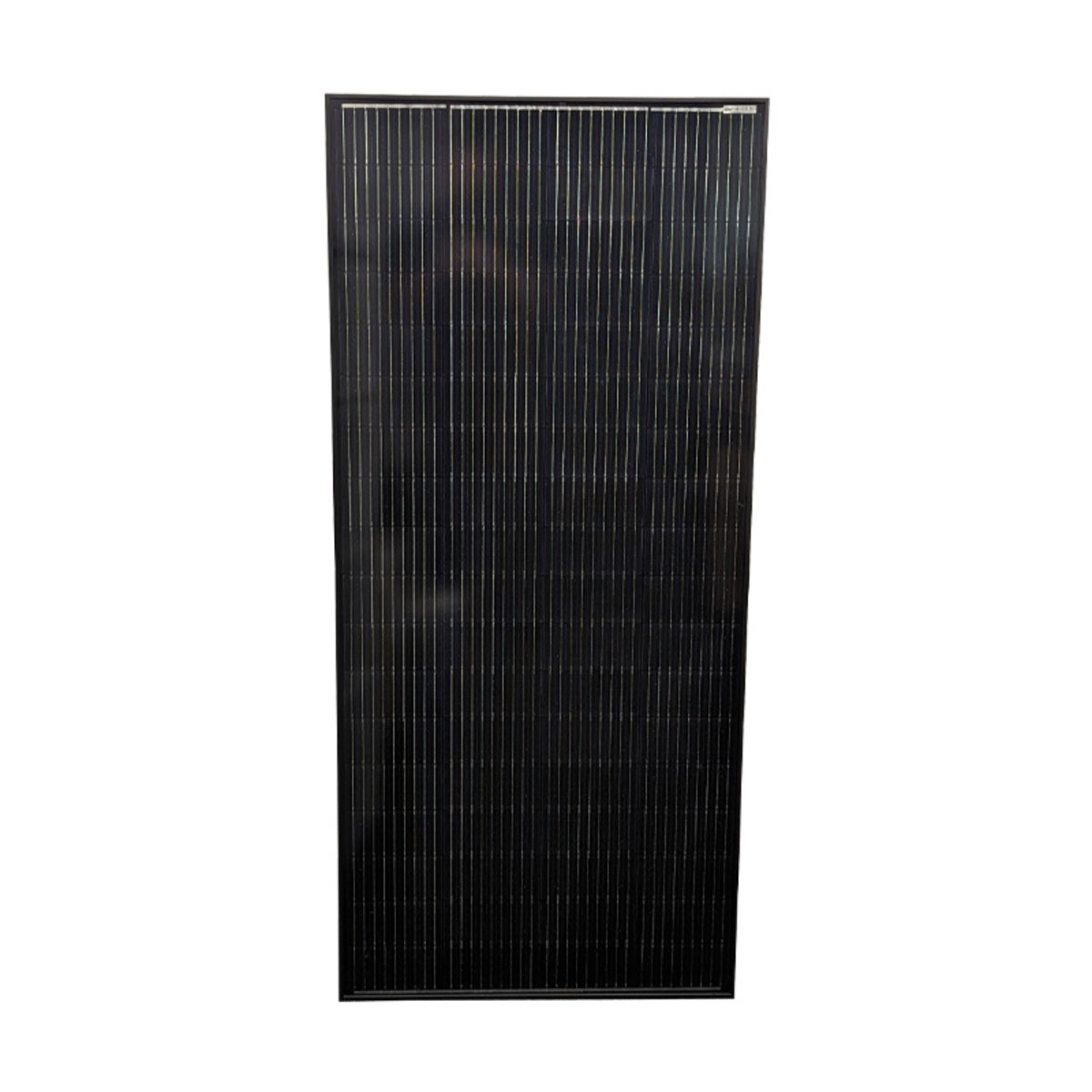

Sphere 210W Monocrystalline Twin Cell Solar Panel, Black

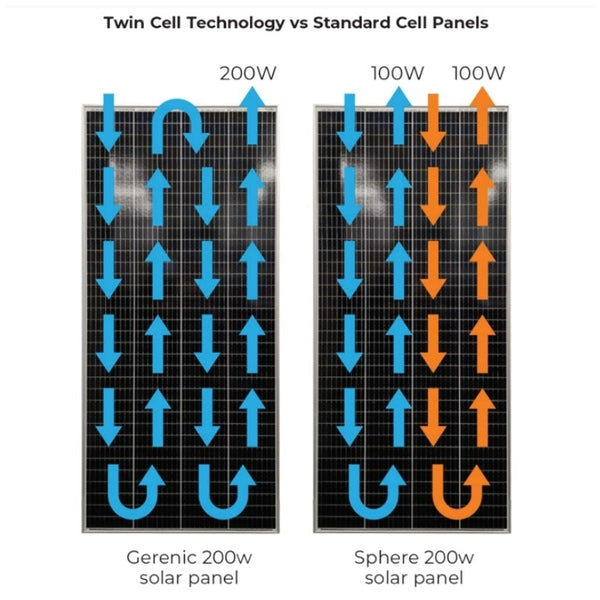

Sphere twin cell solar technology is the future of solar power generation for the caravanning and RV market. Twin cell technology is an innovative solution to the common issue of partial shading that affects caravan and RV solar power applications. Partial shading caused by roof top mounted accessories such as air conditioners, roof vents and satellites can result in severe bottlenecks for conventional solar panels. When even a small section of a traditional solar panel is covered by shade, a blockage is created that drastically reduces overall output. Sphere twin cell technology helps reduce the impact of partial shading by allowing a single large solar panel to operate as if it were two smaller panels with isolated circuit paths. This unique parallel design allows each side of the panel to function independently from the other. When one half is covered by shade, the other will still perform at full capacity. Where partial shading will have already stopped traditional monocrystalline panels from providing vital power, Sphere solar panels with twin cell technology will keep on charging. These panels feature improved cell efficiency, enabling enhanced performance while occupying a smaller footprint . This advancement not only optimises power generation but also provides more versatile mounting options for installations in various configurations.

Features/Specifications:

• Sphere twin cell solar technology for improved performance in partial shade

• Improved cell efficiency enabling 210W from a 180W footprint

• By-passed diodes to improve reliability and further minimise power drops caused by shade

• An anodised aluminium frame to withstand rust with pre drilled mounting holes

• Antireflective, high transparency tempered glass for durability

• IP65 rated junction box provides complete protection against dust and water

• Standard test conditions 1000W/M2,1.5AM,25

• Peak power output (W):210W

• Power output tolerance (%): 3%

• Maximum power voltage (V): 19.84

• Maximum power current (A): 10.59

• Short circuit current (A): 10.94

• Open circuit voltage (V): 23.04

• Maximum system voltage: 1000V/DC

• Junction box type: standard

• Number of cells: 4*16 Twin cell

• Working temperature: -40°C~85°C

• Power output ≤10 years: ≥90%

• Power output ≤25 years: ≥80%

• Dimensions (mm): 1480x670x35

• Weight: 12Kg
