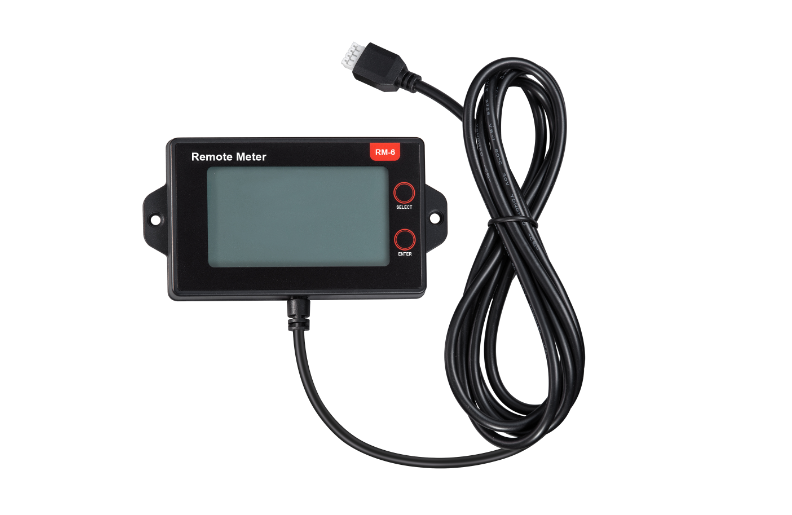

Remote LCD Display for MC Series Controller

Remote LCD display to be used in conjunction with the MC Series MPPT controllers. The LCD graphical main menu enables easy viewing of complete operating data of the solar system. The simple double button design allows for easy operation. This display is directly powered by the controller so no additional power supply is required.

Features / Specifications:

• To be used with the MC Series MPPT Controllers
• LCD Display
• Input Voltage: 12V
• Standby Power Consumption: <0.03W
• Operating Power Consumption: <0.04W
• Connection Cable Length: 1.5M

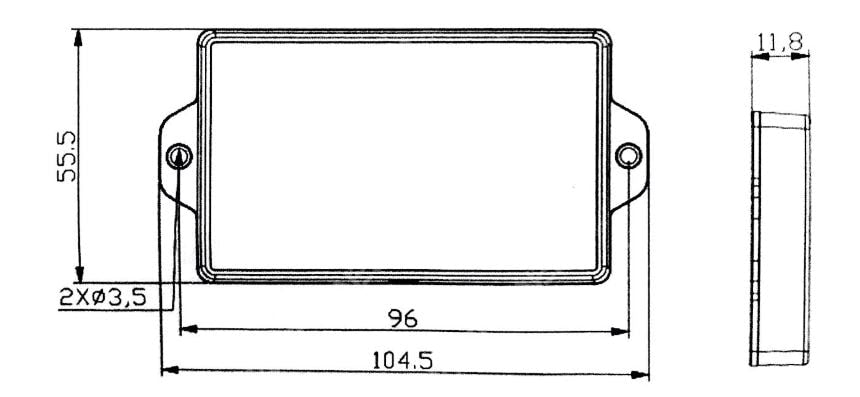

• Dimensions (mm): 104.5 x 55.5 x 11.8
