Recessed Mounted, 16 Amp 240V Inlet with Cable

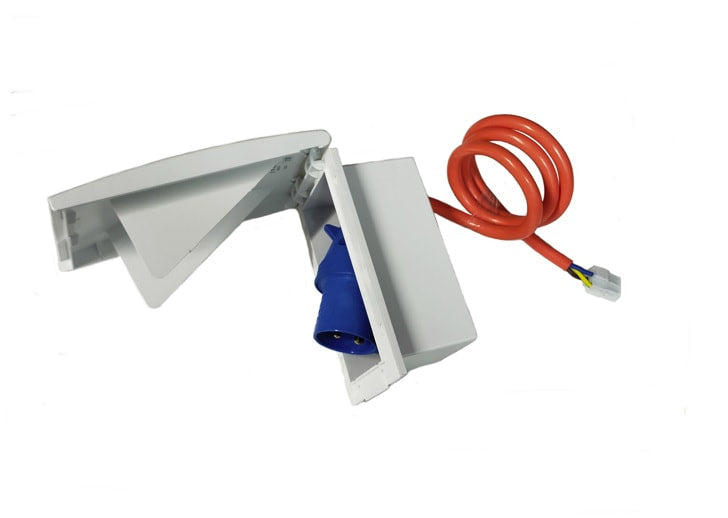

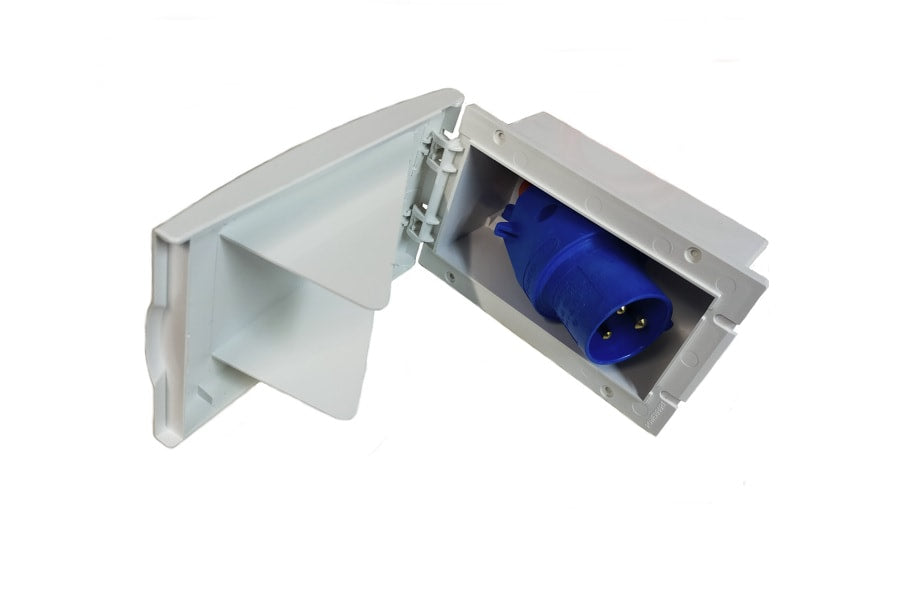

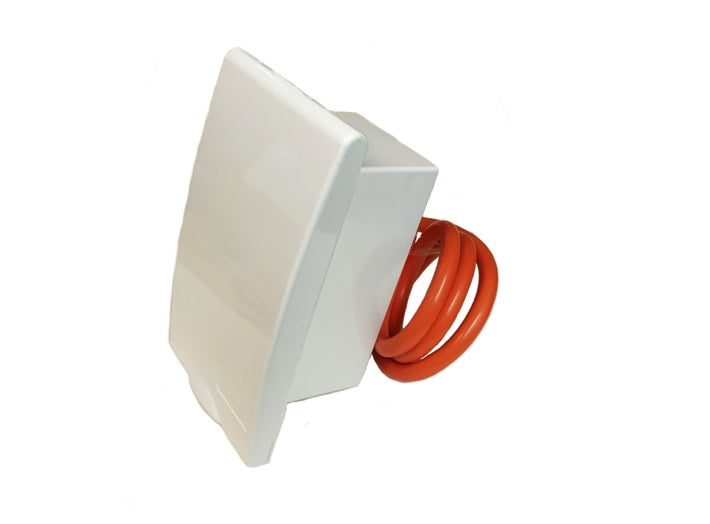

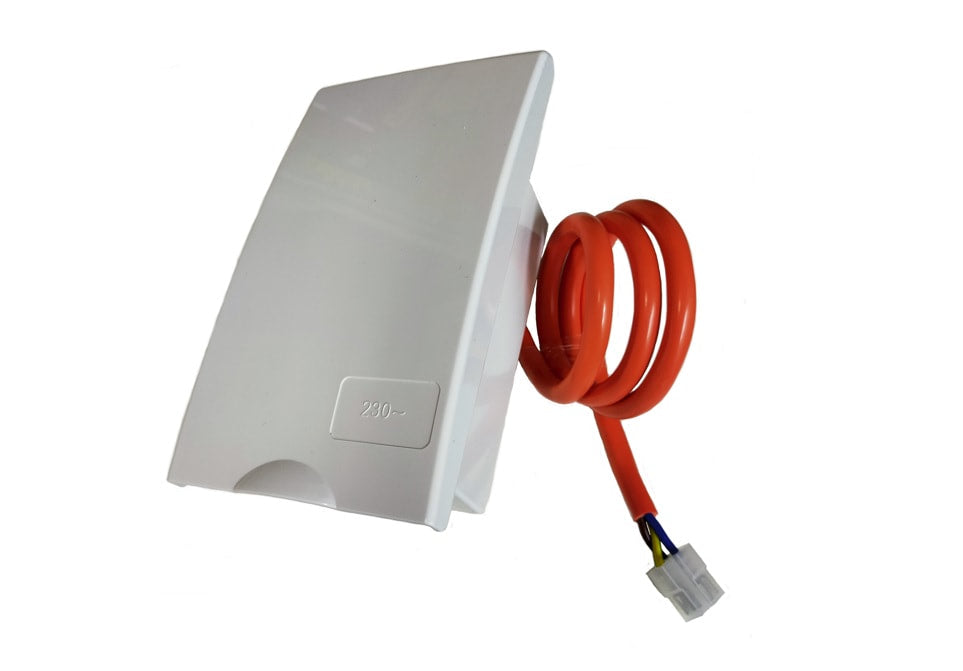

When installed to the exterior of your caravan or motorhome this flush mounted 16A mains inlet allows connection of 240V power to the vehicle. The 16 Amp male inlet is contained within the recessed box with a hinged lid to provide weather protection. The inlet plug is hinged inside the housing so that it swings out to allow easy access during connection and disconnection. There are 4 recessed mounting blind holes in the flange which can only be seen when the cover is opened. This inlet is pre wired with approx 0.8m of orange 3 core mains cable, terminating in a 3 way connector socket.

Features / Specifications:

• Ampere: 16 Amp
• Voltage: 200-250 Volt
• Poles: 2P + E
• Earth Position: 6h
• Flush mounted male inlet
• Comes with cable and fitted connector
• Colour: White
• Depth of visible housing when fitted (mm): 22D
• Cut out dimensions (mm): 135H x 70W
• Depth from mounting face to rear of housing (mm): 63D
• Overall dimensions (mm): 180H x 105W x 85D
• Must be installed by a Certified Electrician
