Gipsy Caravans

MC Series 40A MPPT Solar Controller 12/24V

MC Series 40A MPPT Solar Controller 12/24V

Regular price $399.00 NZD
Regular price Sale price $399.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

If you have made the decision to take advantage of the multiple benefits offered by solar power, a solar controller will be required. A solar controller connects your solar panel to your battery. It protects your battery from overcharging and prevents any reverse current flow from your battery into your solar panel. Use of a MPPT controller leads to a significant improvement of system energy efficiency, including a charging efficiency up to 20% higher than a PWM. This charger supports multiple battery types including 12/24V Lithium, Flooded, GEL and Sealed. Data such as Voltage, Current and State of Charge is displayed digitally when used in conjunction with the remote LCD display purchased separately.

Features / Specifications:

  • Charging Current: 40A
  • System Voltage: 12/24V (Automatic detection)
  • Max Input Voltage of PV Panel: 100V
  • Max PV Input Power: 550W (12V) / 1100W (24V)
  • Stand By Self Consumption: <10mA
  • Conversion Efficiency: 98%
  • MPPT Tracking Efficiency: 99%
  • Supports Battery Types: Flooded (FLD), Sealed (SLD), Gel (GEL), Lithium (Li)

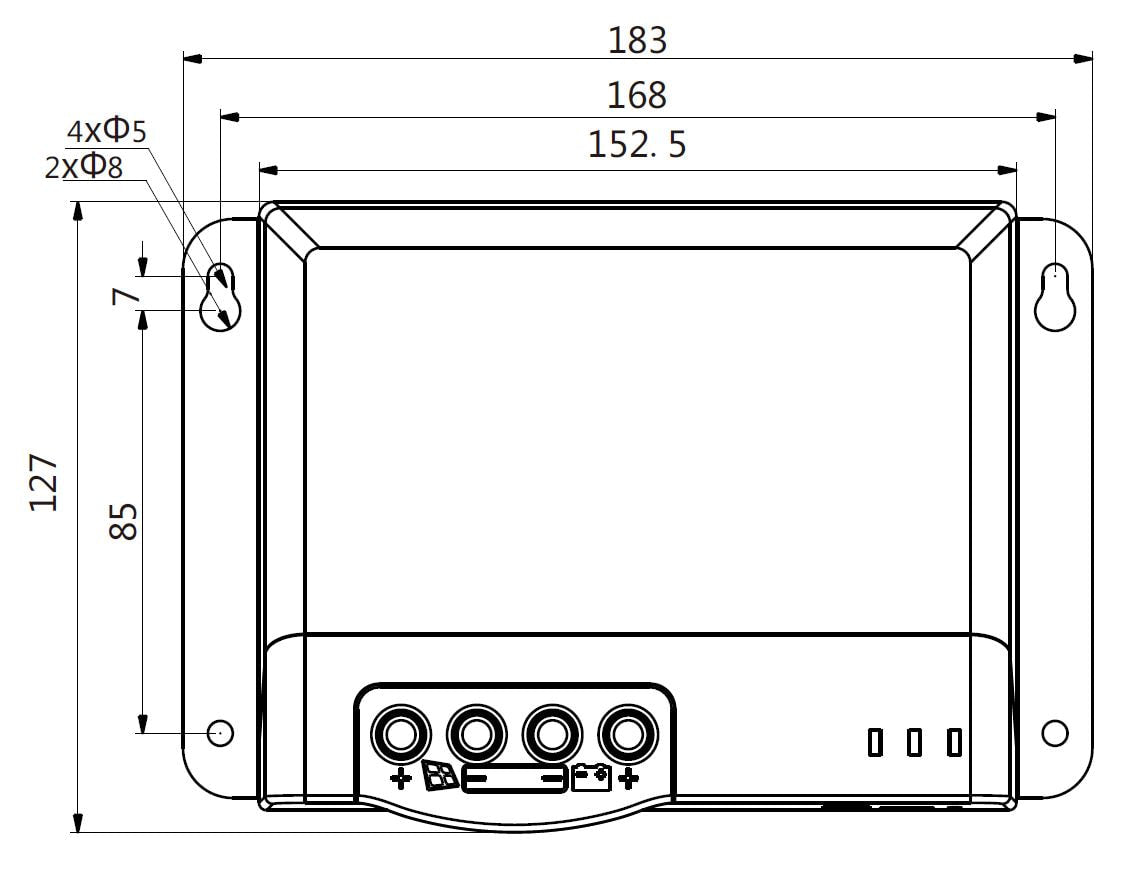

  • Dimensions (mm): 183 x 127 x 66
