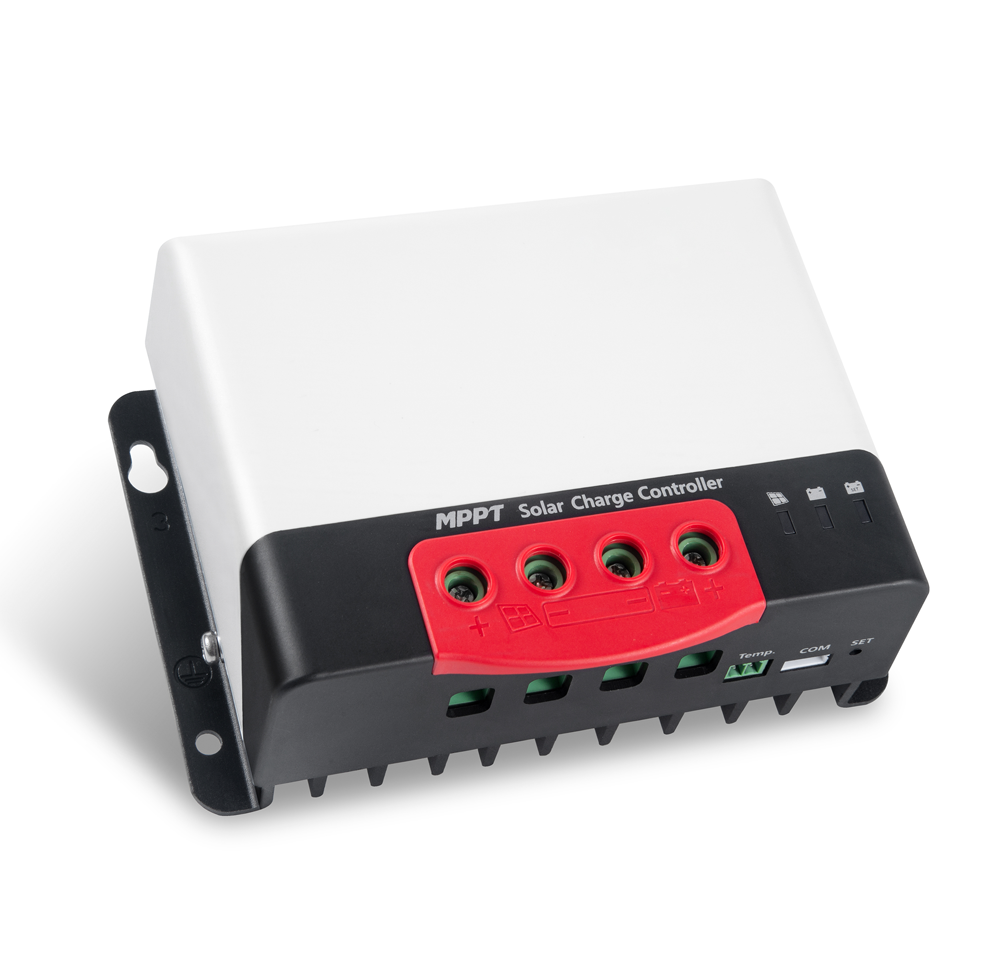

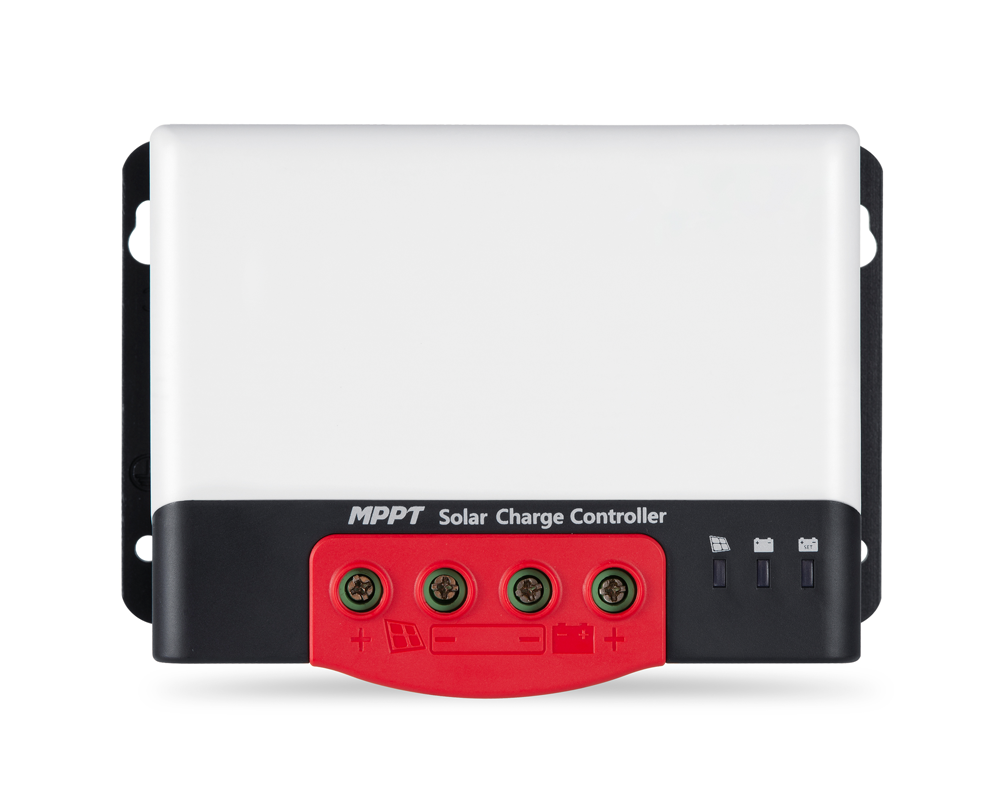

MC Series 30A MPPT Solar Controller 12/24V

If you have made the decision to take advantage of the multiple benefits offered by solar power, a solar controller will be required. A solar controller connects your solar panel to your battery. It protects your battery from overcharging and prevents any reverse current flow from your battery into your solar panel. Use of a MPPT controller leads to a significant improvement of system energy efficiency, including a charging efficiency up to 20% higher than a PWM. This charger supports multiple battery types including 12/24V Lithium, Flooded, GEL and Sealed. Data such as Voltage, Current and State of Charge is displayed digitally when used in conjunction with the remote LCD display purchased separately.

Features / Specifications:

• Charging Current: 30A
• System Voltage: 12/24V (Automatic detection)
• Max Input Voltage of PV Panel: 100V
• Max PV Input Power: 400W (12V) / 800W (24V)
• Stand By Self Consumption: <10mA
• Conversion Efficiency: 98%
• MPPT Tracking Efficiency: 99%
• Supports Battery Types: Flooded (FLD), Sealed (SLD), Gel (GEL), Lithium (Li)

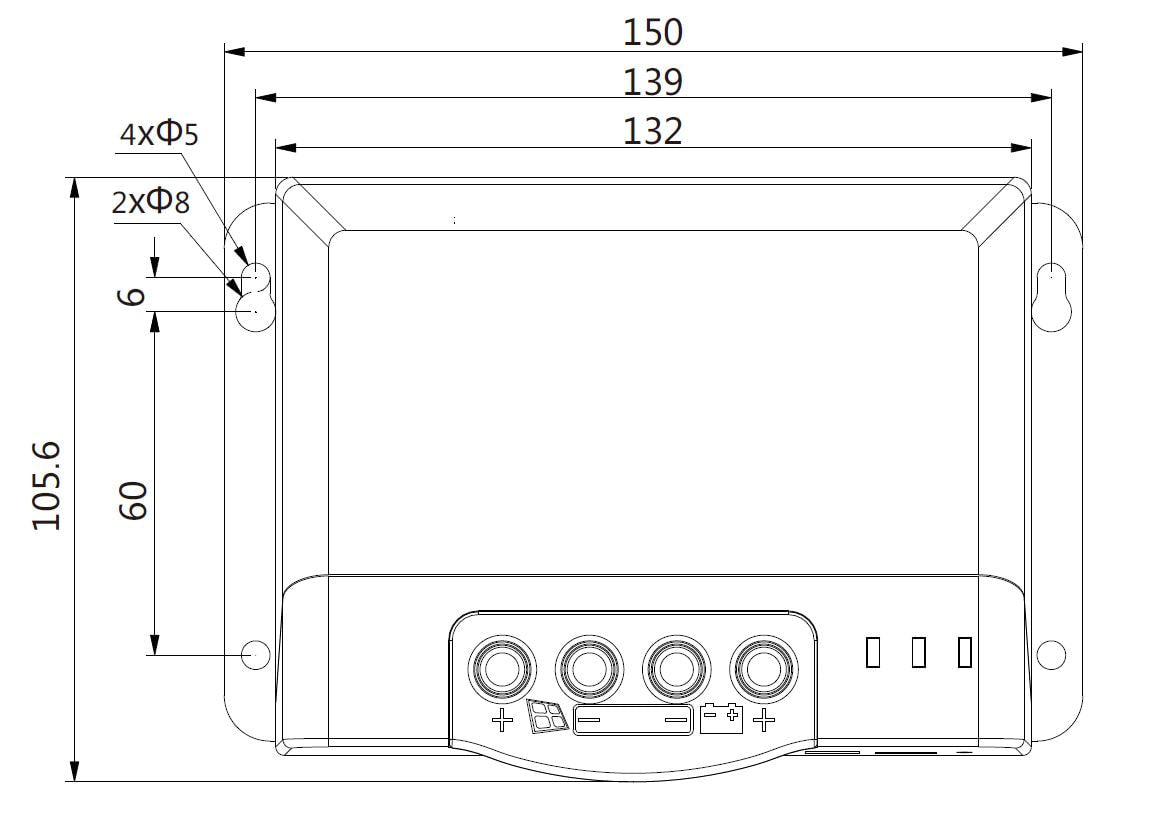

• Dimensions (mm): 150 x 105.6 x 62
