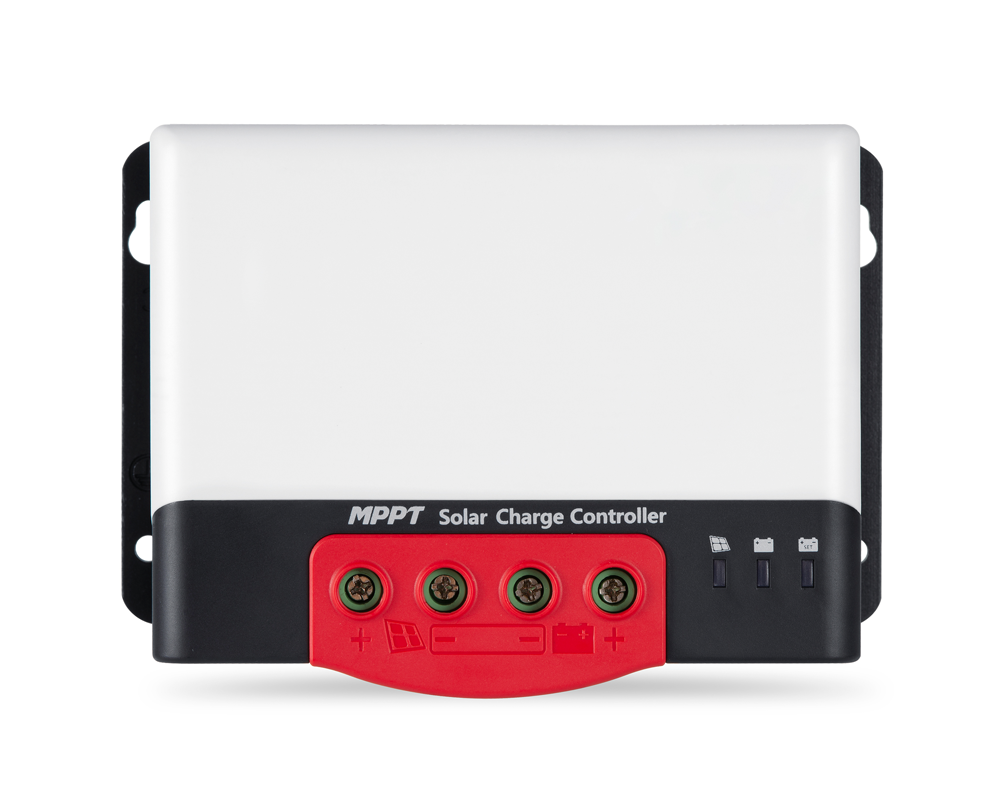

MC Series 20A MPPT Solar Controller 12/24V
MC Series 20A MPPT Solar Controller 12/24V
SKU:
Couldn't load pickup availability
If you have made the decision to take advantage of the multiple benefits offered by solar power, a solar controller will be required. A solar controller connects your solar panel to your battery. It protects your battery from overcharging and prevents any reverse current flow from your battery into your solar panel. Use of a MPPT controller leads to a significant improvement of system energy efficiency, including a charging efficiency up to 20% higher than a PWM. This charger supports multiple battery types including 12/24V Lithium, Flooded, GEL and Sealed. Data such as Voltage, Current and State of Charge is displayed digitally when used in conjunction with the remote LCD display purchased separately.
Features / Specifications:
- Charging Current: 20A
- System Voltage: 12/24V (Automatic detection)
- Max Input Voltage of PV Panel: 100V
- Max PV Input Power: 260W (12V) / 520W (24V)
- Stand By Self Consumption: <10mA
- Conversion Efficiency: 98%
- MPPT Tracking Efficiency: 99%
- Supports Battery Types: Flooded (FLD), Sealed (SLD), Gel (GEL), Lithium (Li)

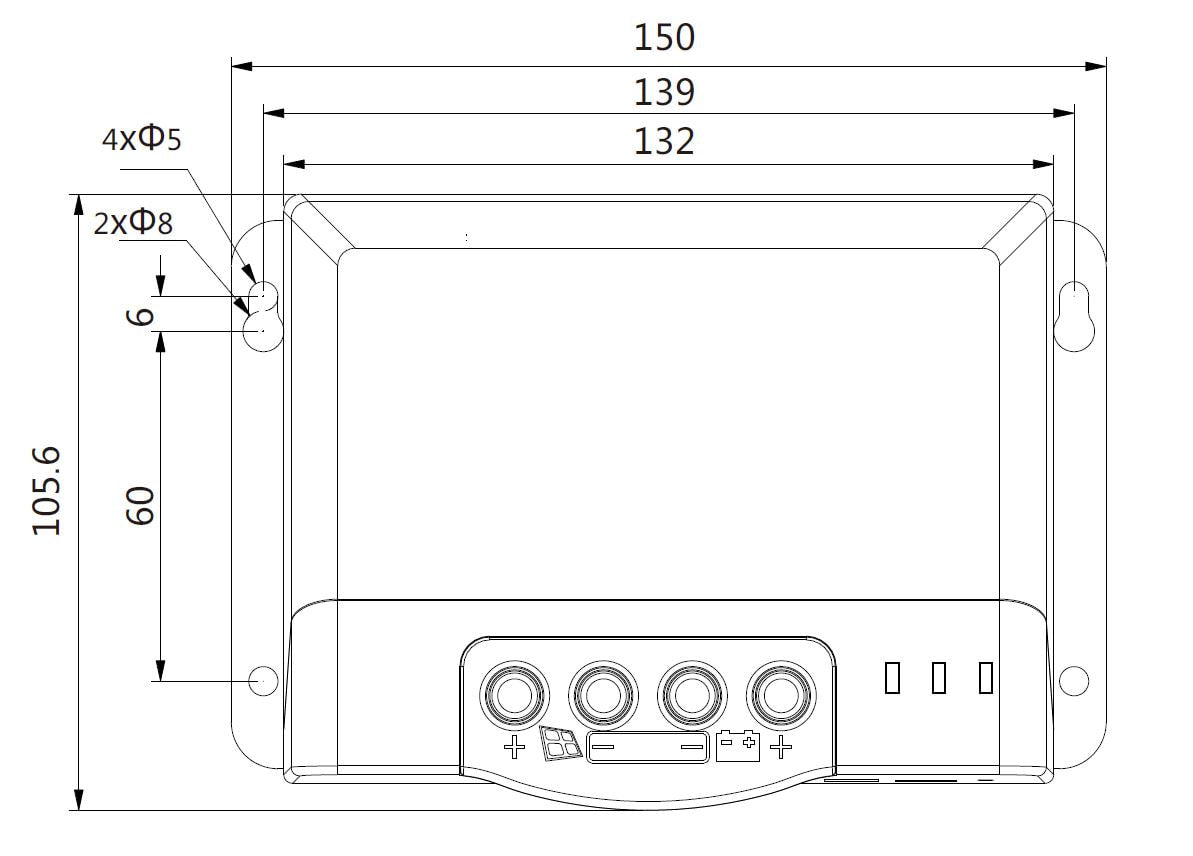

- Dimensions (mm): 150 x 105.6 x 62
