Gipsy Caravans

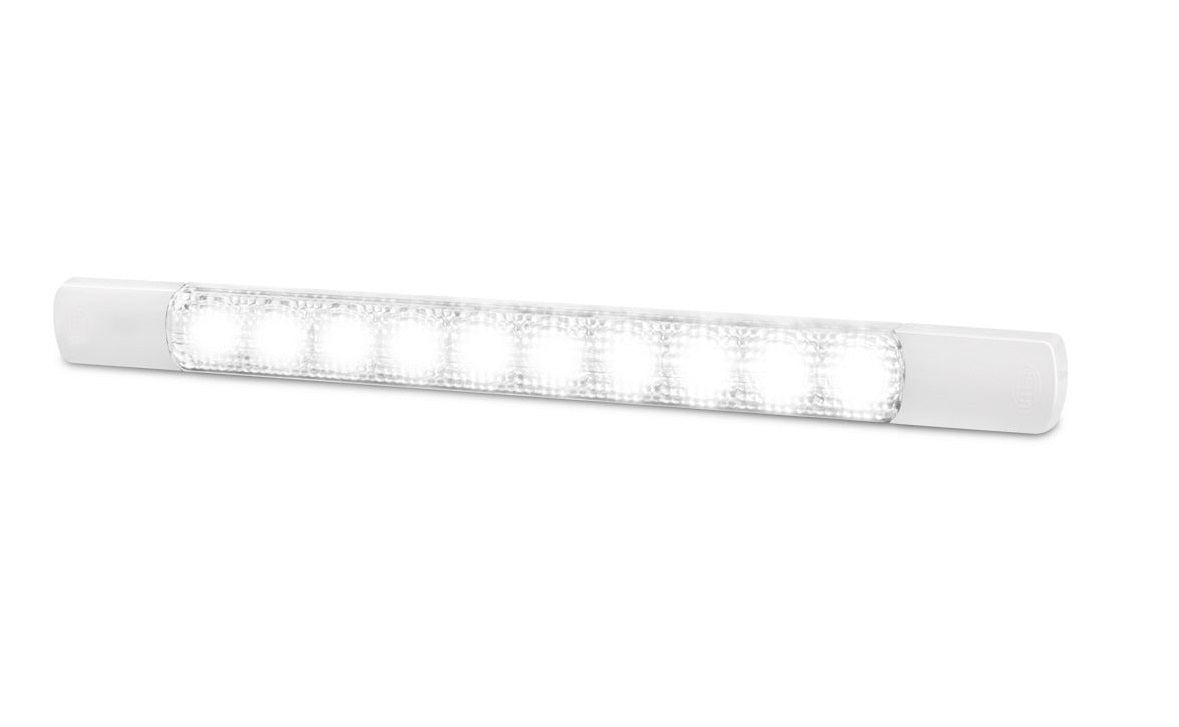

Awning Light With 45° Bracket, 10 LED 12 Volt

Awning Light With 45° Bracket, 10 LED 12 Volt

Regular price $109.50 NZD
Regular price Sale price $109.50 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.

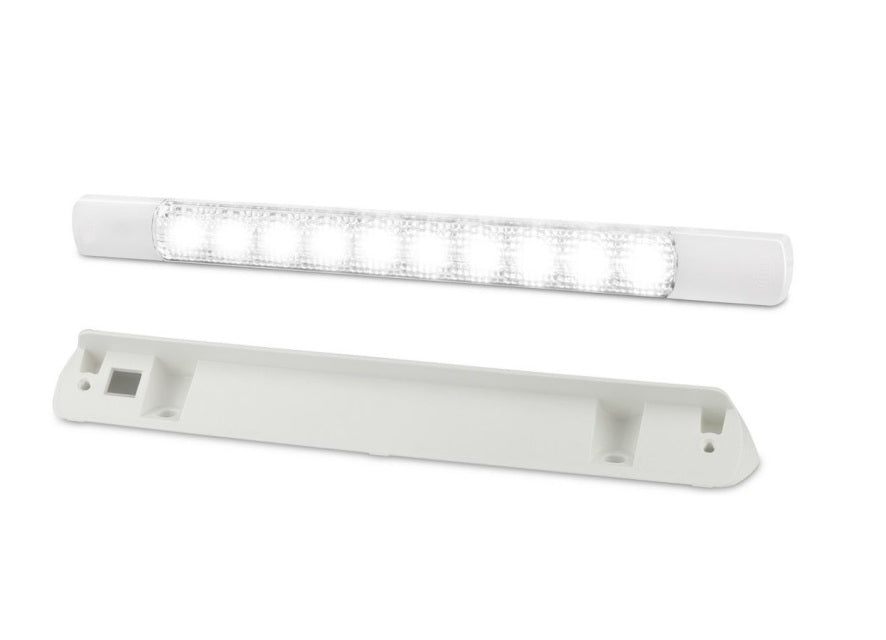

With an ultra slim profile of only 11mm Grilamid lens and low power consumption of less than 3W, HELLA's LED awning light is ideal for interior and exterior use. It comes complete with end caps and a 45° mounting bracket to angle the beam further. Combining state of the art technology together with sophisticated looks, this low profile LED awning lamp is the lighting solution to meet all your requirements. The precision optic, with 15° downward spread pattern is designed to cause minimum glare. True to HELLA's fit and forget philosophy, the LED awning lamp is hermetically sealed offering complete protection against water and dust and high resistance to shock and vibration.


  • ​Ultra slim with a profile height of only 11mm
  • Surface mount
  • Lamp must be mounted on a flat surface with no curvature
  • Benchmark low power consumption
  • Reduced glare design to prevent eye strain
  • Grilamid enhanced impact and UV resistant nylon construction
  • Maximum light output is focused 15° down without bracket
  • Fully sealed against dust and water
  • Suitable for interior or exterior use


  • Colour temperature: 5000K Warm White
  • Operating voltage: 12 Volt DC
  • Power consumption: <3.0W (<0.25A @12V)
  • Reverse polarity protection: IP6K7 / IP6K9K
  • IP6K7: Protection against dust and temporary water immersion
  • IP6K9K: Protection against dust and high-pressure / steam jet cleaning
  • Cable length: Pre-wired with 2.5M of twin core cable
  • Dimensions screw to screw (mm): 265
  • Dimensions w/out bracket (mm): L283 x W25 x D11
  • Dimensions with bracket (mm): L295 x W38 x D16
