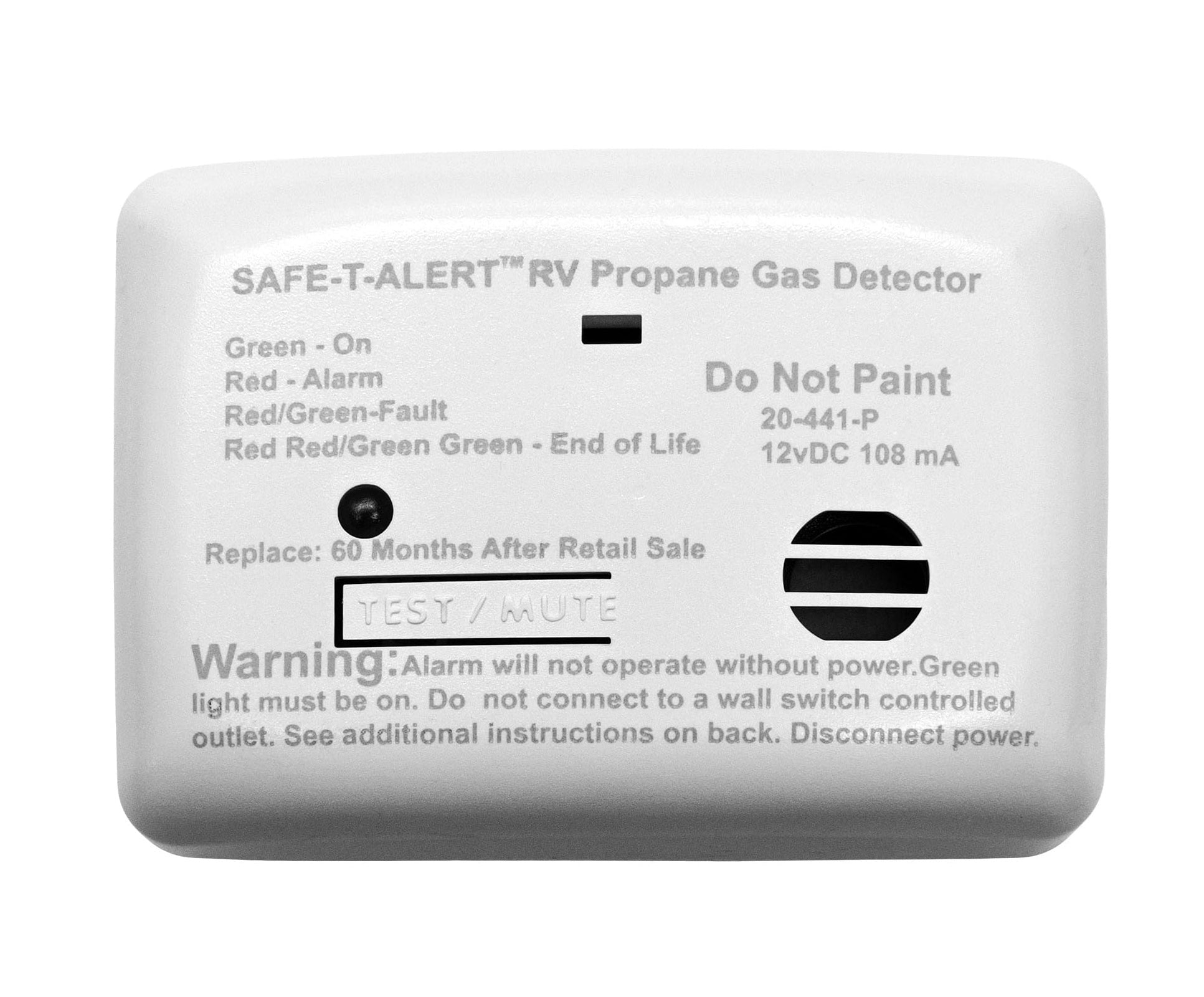

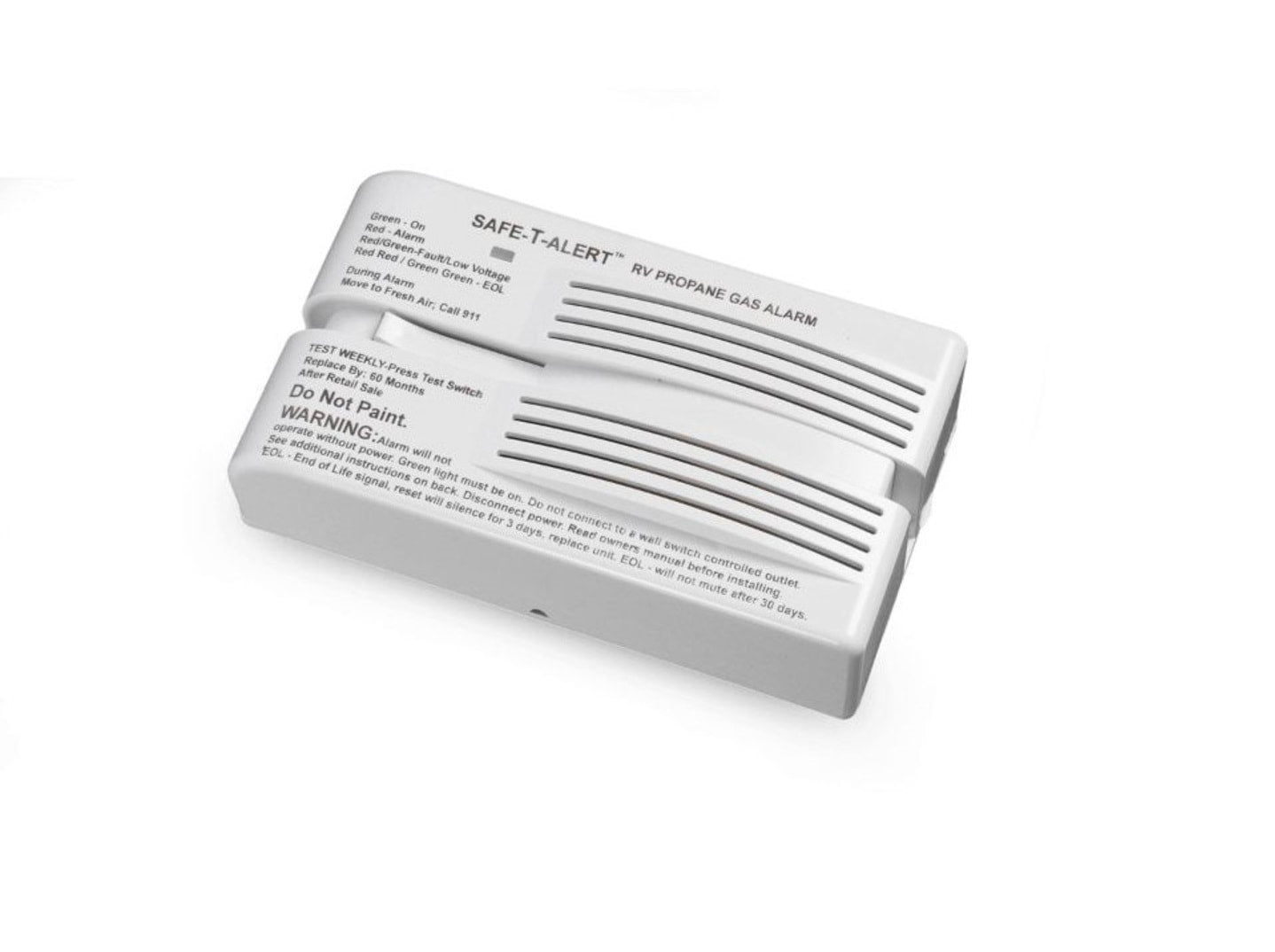

12 Volt Gas Detector Safe-T-Alert

This sensor is designed to properly detect dangerous concentrations of propane gas and alert users to unsafe situations. When dangerous levels of propane gas (<25% LEL) are detected the alarm signal will activate. A reset/mute circuit can be activated to temporarily silence the alarm. This alarm is listed for installation in recreational vehicles. Install this alarm near sources of a potential gas leak 4 to 20 inches off the floor.

Features / Specifications:

• Power supply: 12V DC
• Recommended wire guage: 14 GA
• Current draw: 90 mA @ 12V DC
• Audible output: 85 dB @ 10 feet
• Alarm trigger: <25% of the LEL of propane
• Visual operational signal: Green
• Visual alarm signal: Red
• Visual fault signal: Red/Green

• Visual end of life signal: Red Red/ Green Green

• Replace 5 years after install

• Dimensions (mm): 90 x 64 x 40

• Warranty: 1 Year
