Gipsy Caravans
12 Volt Control Panel RV Traveller 6 Way Panel
12 Volt Control Panel RV Traveller 6 Way Panel
SKU:
Regular price
$152.50 NZD
Regular price
Sale price
$152.50 NZD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

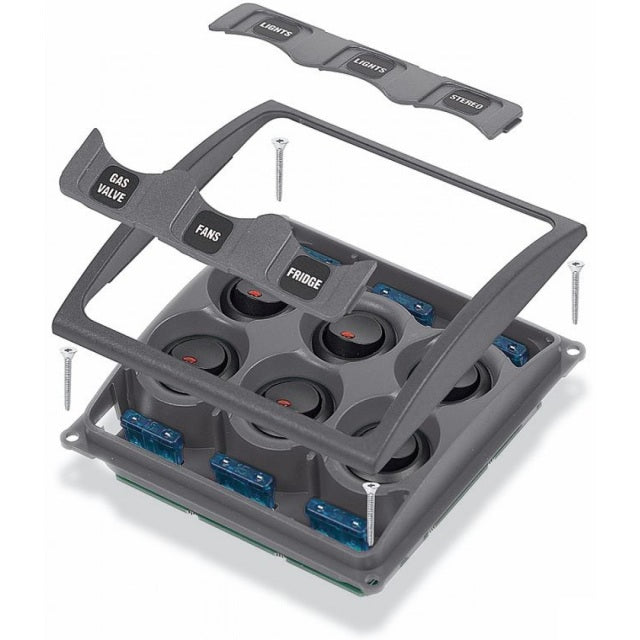

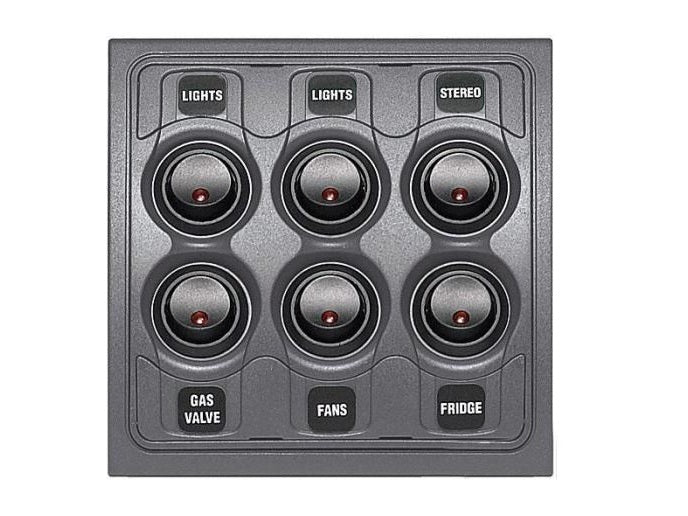

This is a 12 Volt 6 way switch panel to keep all your controls in one place. The Contour Traveller control panel is an interior, economical option for use on smaller caravans, motorhomes and RV's. Supplied with ATC fuses accessible from the front cover, the recess mounted design provides for simple modular installation with other panels in horizontal or vertical configuration. Supplied with a label sheet, an LED indicator light on each switch and matching trim concealing the mounting screws for a tidier appearance.
Features/Specifications:
- 6 switches
- Red LED indicator lights
- Recessed rocker switches to replace accidental switching of panel
- ATC fuses accessible from front cover
- Square dimensions allow for modular mounting
- Matching trim conceals mounting screws
- Supplied with label sheet
- Voltage: 12 Volt DC
- Maximum panel load: 50 Amps
- Dimensions (mm): L108 x H108 x D36
- Cut out required (mm): L97 x W97
- Side protrusion dimensions (mm): 16
Label Sheet Contains Stickers For:
- Water pump
- Gas alarm
- Fridge
- Stereo
- Lights x2
- Cooker Ignition
- Toilet
- Vents
- TV
- Phone
- Rangehood
- DC outlets
- Awning light
- Extractor fan
- Gas valve
- Space heater
- Steps
- ACC
- Alarms
- Water heater
- Fans
- Blank x2
