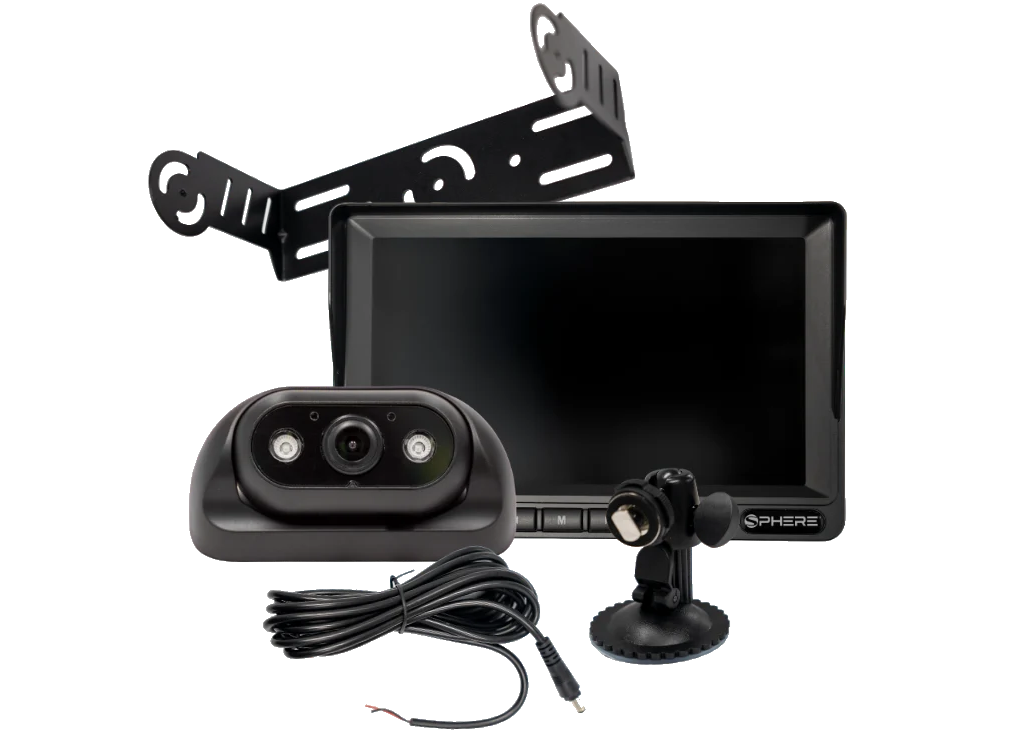

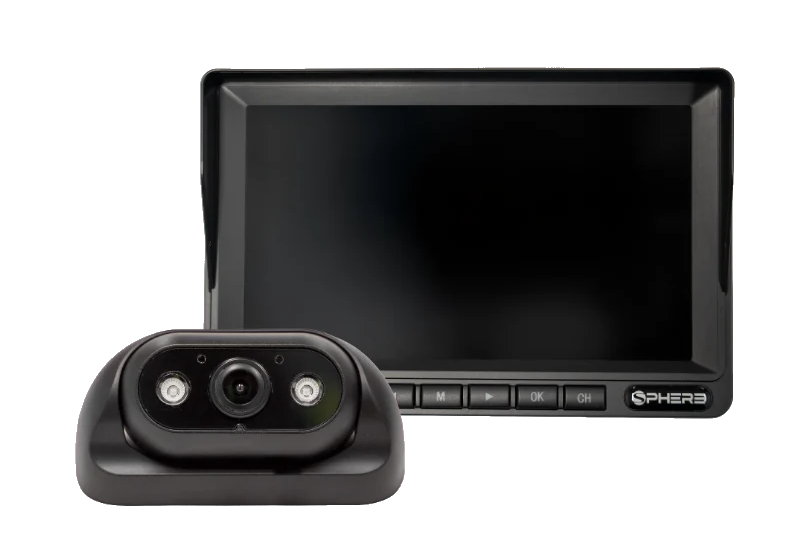

Sphere Aero Wireless Reversing Camera

Make towing, reversing and campsite manoeuvring easier with the SPHERE AERO Wireless HD Camera Kit. Designed for caravans, RVs, motorhomes and tow vehicles, this camera kit gives you a clearer view of what’s happening behind you. Helping take the guesswork out of reversing, lane changes and tight parking situations. With support for up to 4 cameras, multiple viewing modes and a high-resolution monitor, the SPHERE AERO is built for drivers who want better visibility and more confidence on the road.Whether you’re backing into a caravan park site, keeping an eye on traffic behind the van, or navigating those “just a little further back” moments, this wireless camera system helps make the job simpler.

Features:

• Wireless HD camera system - Enjoy a clearer rear-view setup without the need for complicated video cabling between your camera and monitor.

• Supports up to 4 cameras - Making it suitable for larger RV setups or drivers who want multiple viewing angles.

• Multiple viewing options - Choose from single, split screen or quad view depending on your setup and driving needs.

• Adjustable display settings per camera - Each camera display can be individually adjusted, giving you better control over how your views appear on screen.

• Switchable grid lines - Turn grid lines on or off to suit your preference.

• Wide-angle camera view - The camera offers a 127° horizontal and 170° diagonal viewing angle, helping you see more of what’s behind you.

• With an IP69 waterproof rating - The camera is designed to handle harsh weather and road conditions.

Monitor Specifications:

• Supports NTSC and PAL video systems

• Supports up to 4 cameras

• Single, split screen and quad viewing modes

• Grid lines can be switched on or off

• Operating frequency: 2400–2483.5MHz

• Transmitted power: 18db

• Resolution: 1280(H) x 1024(V)

• Contrast: 500:1

• Brightness: 500cd/m²

• Response time: 25ms

• Power supply: DC12–36V

• Operating temperature: -20°C to 70°C

• Storage temperature: -30°C to 80°C

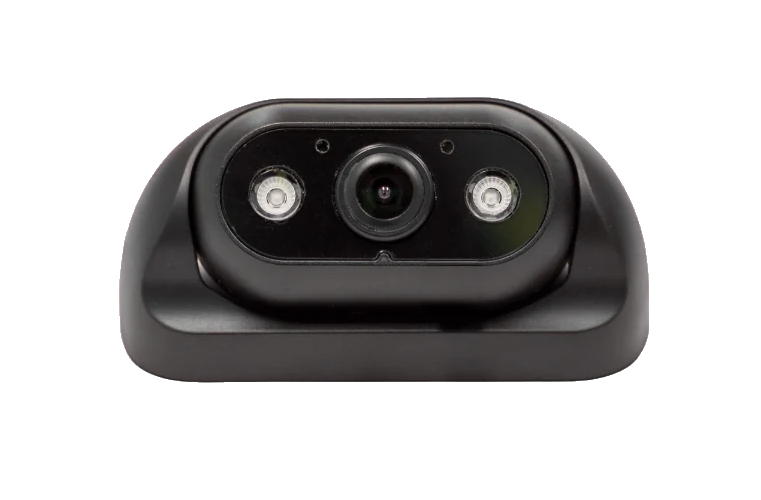

Camera Specifications

• Image sensor: 1/2.7 inch Starlight

• HD picture elements: 250,000 pixels

• View angle: 127° horizontal / 170° diagonal

• Resolution: 1000TV lines

• TV system: PAL/NTSC

• Waterproof rating: IP69

• Minimum illumination: 0.5 lux

• Power supply: DC12–36V

• Operating frequency: 2400–2483.5MHz

• Operating temperature: -20°C to 70°C / RH 95% max

• Storage temperature: -30°C to 80°C / RH 95% max
